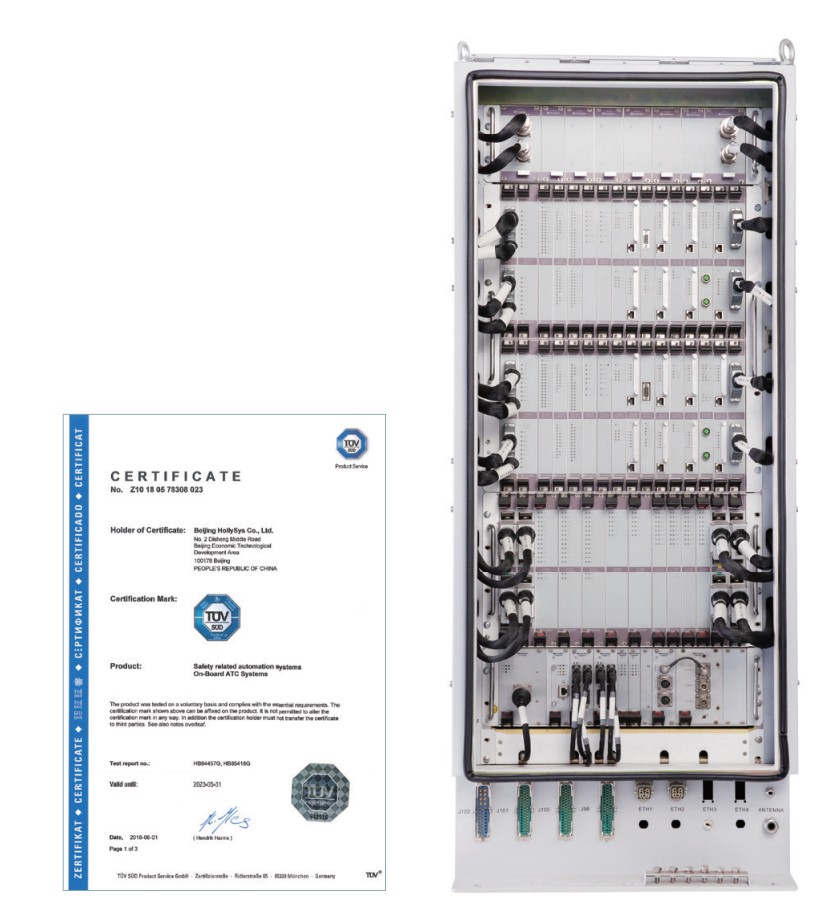

Vehicle On-board Controller(VOBC)HCC-1000

Features

• ATP: SIL4 safety certification
• ATO: SIL2 safety certification
• Safety redundancy structure of '2 X 2002"
• Support for driverless functions (optional)
• Support head-to-tail redundancy of speed measuring and positioning equipment
• Support remote restart
• Support remote RM functions

ATP Functions

• Train speed measurement and Positioning
• Overspeed protection
• Emergency braking/relieving
• Temporary speed limit management
• Red light false start protection
• Retrogression protection and walking protection
• Train integrity supervision
• Electronic maP management
• Door monitoring
• Platform door monitoring
• Operation level/driving mode management
• Train turn-back
• Unmanned driving functions

ATO Functions

• Automatic control of train speed
• Running time control between stations
• Accurate platform parking
• Stop timing
• Departure management
• Door control
• Manage car detainment and mediation

AOM Functions

• Be in dormancy
• Wake up
• Undervoltage protection of battery
