Multi-Parameter Mass Flow Meters & Mass Flow Controllers for Gases

The d·flux multi series is a fast and reliable multi-parameter mass flow meter for gases with measurement outputs for mass, volumetric and normalized flow, pressure and temperature. One of the many advantages of this laminar flow meter is the ability to easily switch to a different gas without a loss in accuracy.

Features

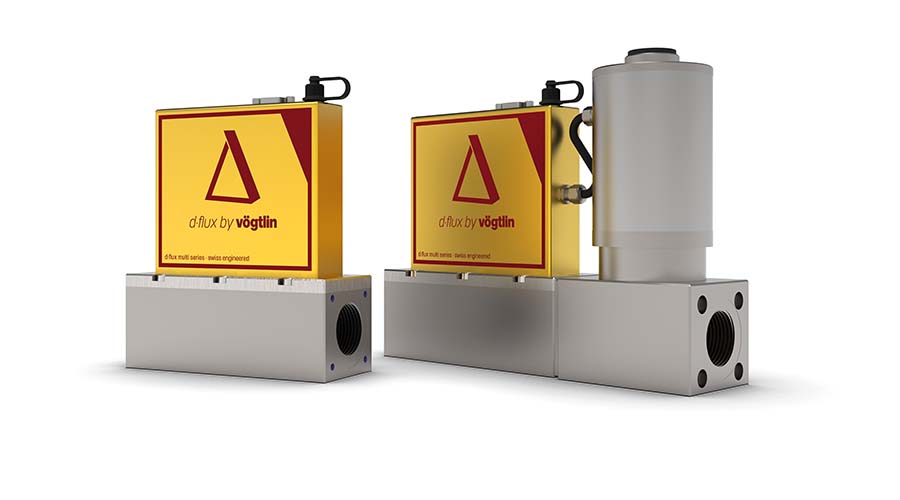

• Meter and Controller
  The unit is available as meter or with a strong integrated control valve as controller

• Flow rates up to 1400 ln/min
  The unit is available in 4 ranges (0-500, 0-700, 0-1000 and 0-1400 ln/min for air). Each range can be reduced by the user by 30% without any loss in accuracy (rate for air, other gases according to conversion)

• Multiple pre-programmed gases
  The d⋅flux multi series mass flow instruments can contain up to 15 programmed gases.More gases can be added at any time

• State-of-the-art communication
  The devices offer advanced Modbus communication & analog output. Optional Profinet or EtherCAT interface available (Ethernet IP available soon)

• Wide application scope IP54
  The d⋅flux multi meters and controllers are suitable up to 14 bar a and from -20 to 60 °C. The body is in stainless-steel 316L and environmental protection is IP54

• Wireless device access with the free Vögtlin Connect app
  The Vögtlin Connect app can be used with any Android phones and let’s you easily and securely (password protected) connect to your d·flux device. Vögtlin Connect is a user friendly configuration software and offers the adjustment of many device parameters
