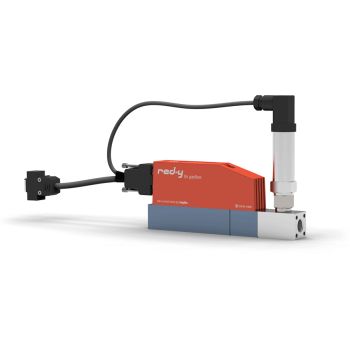

Digital Pressure Controllers for Gases with integrated Flow Measurement
The electronic red-y smart pressure controller combine the reliable technology of our digital mass flow controllerswith electronic pressure control.
The devices automatically control a predefined process pressure and at the same time measure and/or limit the flow rate. On-the-fly switching between pressure control and flow control offers maximum flexibility.
1 Device – 3 Functions
The pressure controller combines three functions:
- Pressure controller
- Pressure controller with flow measurement/limitation
- Flow controller with pressure measurement
Instrument Versions
Integrated pressure controlAccuracy:± 0.5 % of full scale
Integrated back pressure control
Accuracy:± 0.5 % of full scale
Pressure control with external pressure transmitters
Pressure controller with gas mixer function
It‘s a red-y smart
The pressure controllers combine the innovative equipment design of the red-y smart series with the development competence of Vögtlin Instruments AG.
High-quality components ensure long and trouble-free operation.
Analog & Digital
The pressure controllers make use of the latest CMOS technology and have a digital (Modbus RTU) and analog interface as standard*.
Profibus interface is available as option (Profibus DP-V0/DP-V1).
* analog output for actual value flow only
Operating Status Indication
The instruments offer a built-in LED status indication
get red-y Software
Efficient device management with the free get red-y software:
- View flow rate & temperature
- Change set points
- Select measured gas
- Visualization of measured data
- Adjusting control parameter
Optional modules get red-y software:
- Datalogging
- Gasmixing
- Adjustment/Calibration
Options
Built-in display (option)Display includes: Flow rate, totalizer, unit of measure & set point control
Multigas (option)
One controller or controller can be used for up to 10 different gases or gas mixtures
Profibus
The instruments are available with Profibus interface: DP-V0 & DP-V1 protocols
3-Year Warranty
High-quality components ensure long and trouble-free operation (does not apply to calibration, options and accessories)
