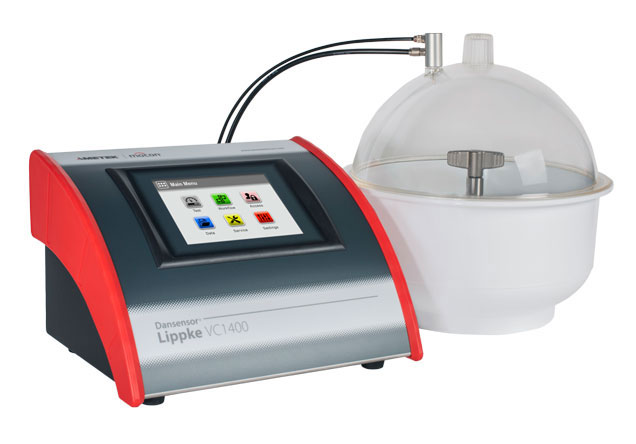

Lippke VC1400
The Dansensor® Lippke® VC1400 is a package leak detector which finds even the smallest leaks in blister packages, glass vials and other flexible, rigid and semi-rigid packages. It ensures seal strength and package integrity for quality control checks, R&D package testing and process optimization on the packaging line.
This instrument automates the methylene blue dye test and bubble emission test (ASTM D3078), guaranteeing optimal reproducibility. Test parameters and results are automatically stored on the device and can be printed or exported as a CSV file. Vacuum and penetration time can easily be adjusted on the touchscreen’s graphical user interface.
The optional accessories and two available variations, either with an integrated vacuum ejector for use with compressed air or with an external vacuum pump (PU1400), make the Dansensor Lippke VC1400 a flexible and user-friendly addition to your quality control routine.
Features
- Touchscreen with GUI for user-friendly operation
- Vacuum generation with vacuum pump or compressed air
- Individual user logins for security
- Store test parameters for repeatability
- Data capture, storage and export
- USB port for connecting optional barcode scanner, keyboard or printer
- Optional accessories incl. vacuum chambers, vacuum pump unit and barcode scanner
- Multilingual user interface
- Compliant with ASTM D3078
- IQ/OQ validation documents available
Benefits
- High precision vacuum regulation
- No adjustment required for different package sizes or types
- Clear and concise on-screen test results
- One-touch documentation print-out with external printer
- Easy installation and operation
- Automatically capture and store data
- Test package integrity with blue dye or bubble test
