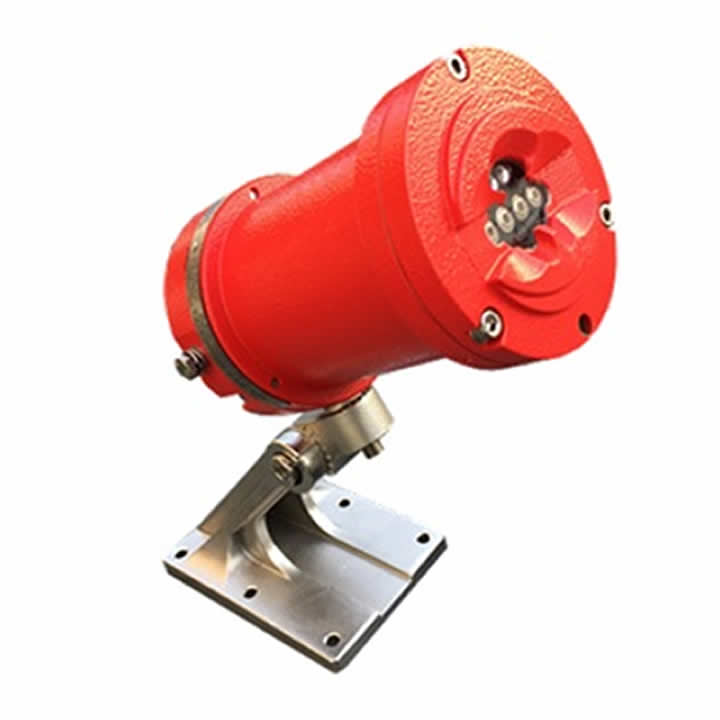

Flame Detectors IPES IR4000
The state-of-the-art multi-spectral infrared technology of ESP Safety‘s Model IPES-IR4000 Flame Detector affords the highest sensitivity in detecting flames from combustible vapors gases within its 120° conical field of view.
IPES-IR4000’s advanced detection technology ensures rapid flame recognition and alarm signaling. In addition, IPES-IR4000’s selective, multi-spectral technology virtually eliminates false alarms. It ignores false triggers from sources such as direct or indirect sunlight, arc welder flash, resistive heaters, fluorescent, halogen, and incandescent light.
IPES-IR4000 sends an alarm only when data from multiple different IR wavelengths agree that a flame or fire is present in the field of view. Upon confirmation of flame or fire, the IPES-IR4000 transfers alarm signals to receiving control devices located in control and operations rooms and to fire alarms and burglar/fire alarm systems.
The IPES-IR4000 Flame Detector is constructed with an explosion-proof housing for use in hazardous (classified) locations.
Electrical Specifications
- Supply Voltage: +24VDC Nominal (=18 to 32VDC)
- Power Consumption:
- •Standby: <2W
- •Alarm: <3W
- •With heater on maximum: <7.5W
- HART Communication: Compatible with HART Protocol7
- Digital Outputs: RS485 Modbus, RTU
- Relay Contact:
- •Fire Alarm: One normally open / normally closed (NO/NC) user selectable, latching or non-latching.
- •Fault: One normally open / normally closed (NO/NC) user selectable Normally Energized
- Wiring: 14 AWG (2.08 sq.mm) or 16 AWG (1.31 sq.mm) Shielded cable is recommended
- Terminals: 14 AWG – 2.5 sq.mm
Functional Specifications
- Wavelengths: 4.0 to 5.0um
- Detector Range-Distance: Maximum 345ft (105m), depending on detected fuel
- Cone of Vision: 120 degrees (horizontal/vertical)
- Response Time: 3 seconds
Mechanical Specifications
- Material: Stainless Steel (Grade 316) or copper free Aluminum
- Conduit Connection: Two (2) M20 X 1.5, adaptable to ¾” NPT
- Dimensions: 3.94”x 9.08”x 14.2” (100 x 231 x 361 mm ) mounted with bracket
- Weight: Stainless Steel 11lb (5.0kg), Aluminum 5.5lb (2.5kg)
- Ingress Protection: IP66
Environmental Specifications
- Operating Temperature: ‐40°F to +185°F (‐40°C to 85°C)
- Extended Operating Temperature (by request): ‐76°F to +257°F (‐60°C to 125°C)
- Storage Temperature: ‐76°F to +185°F (‐60°C to 85°C)
- Humidity Range: 0 to 95% relative humidity (can withstand 100% condensing humidity for short periods of time)
